Description

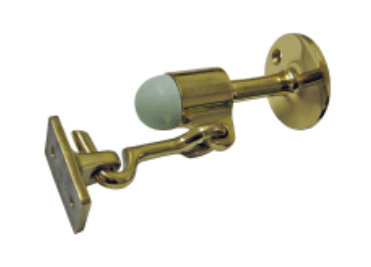

This Wall Door Stop and Manual Holder functions as a door stop and a hold-open device. Its heavy duty construction makes it perfect for commercial grade high traffic conditions. It features a rubber tip that does not damage the surface of the door. It is available in Polished Bright Brass, Satin Chrome, and Oil Rubbed Bronze finishes.
Product Specifications:
- Wall Door Stop and Manual Holder
- Unit functions as stop but serves as a hold-open device when hook is manually engaged in strike
- Requires manual disengagement to release hold-open
- Commercial Grade for high traffic conditions
- Solid Cast Brass or Bronze heavy duty construction
- Perfect for indoor or outdoor use
- Rubber tip does not scar nor mark surface of door
- Finishes Available: Polished Bright Brass, Satin Chrome, Oil Rubbed Bronze
- Base Projection: 3 5/8″ Inches
- Base Diameter: 2″ Inches
- Engaged Projection: 5 3/8″ Inches
- Strike Height: 1 1/2″ Inches
- Strike Width: 1 3/16″ Inches
- Hook: 2 3/4″ Inches
- Eye: 1 3/8″ Inches x 1 1/8″ Inches
- Strike Projection: 1″ Inch
- Includes mounting hardware for all wall construction applications
- Conforms to ANSI/BHMA 156.16, BHMA:L11351 for brass, FED SPEC:1321E
- Sold individually
