Description

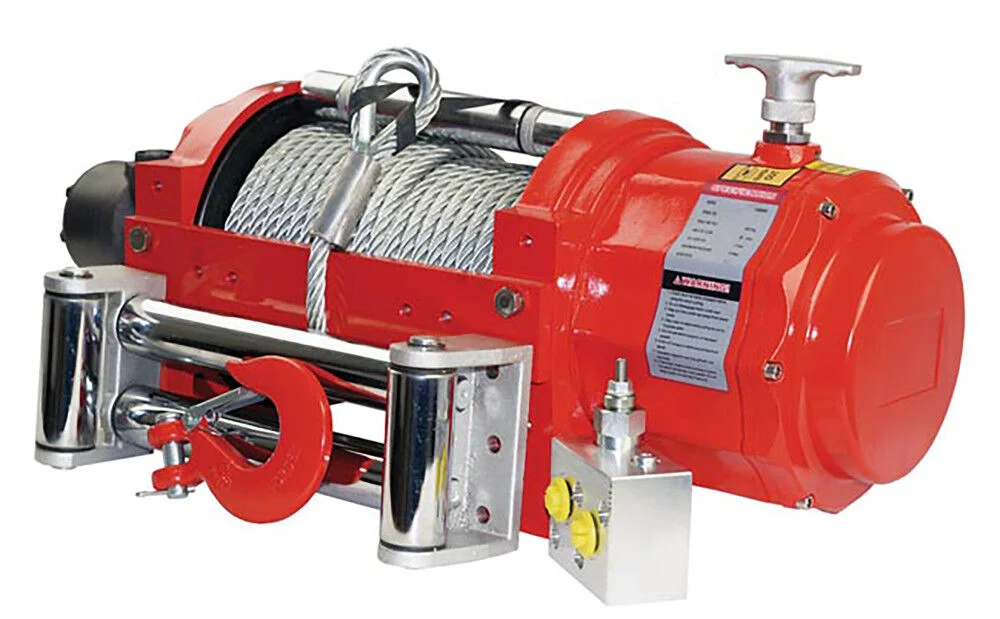

DK2 Warrior Winch Hydraulic 15000lb
Compact, tough.
A hydraulic winch for industrial and commercial applications.
The special heat treated planetary gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range.
Complete with internal brake to ensure maximum control and load holding.
California Proposition 65 Warning.
Features
- Patented Heavy Duty Gearing
- Integral, Automatic Fail safe Brake
- Spring Engaged Manual Free spool
- Rugged and compact for long life
- Meets the requirements of SAEJ706
- Rated Line Pull15000 lbs (6810 kg)MotorHydraulic Dis 160 ml/rGearing17.2:1Drum Size Dia x L127 x 270mmCable Dia x L12mm x 25mDimensions716 x 282 x 304mmWeight80kg (176 lb)Mounting Pattern303.5 x 114.3mm (368 x 117.2mm)
- Layer of Wire RopeLine Pulllbs (kgs)115000 (6810)212513 (5681)310735 (4874)
- Line Pull lbs (kgs)Line Speedft/min (m/min)Flow L/minPressure Mpa04.29 (1.3)1023995 (1816)8.58 (2.6)204.65992 (2724)12.54 (3.8)306.87990 (3629)16.83 (5.1)40911980 (5448)21.12 (6.4)501215000 (6810)15
Specifications
Brand Name- DK2
Assembled Depth (in)- 28.18
Assembled Weight (lbs)- 270
Assembled Width (in)- 12
Assembly Required- Yes
Color- Black Red or Gray
Country of Origin- China
Height (in)- 11.6
MFG Part (OEM)- 15000NW
Material- Steel
Package Contents- Warrior Winch Hydraulic 15000lb
Package Depth- 16
Package Height- 33
Package Weight- 273
Product Condition- New
Sound Decibels (dB)- 70 dBA
UPC- 826518005166
Warranty Type- 1 Year
