Description

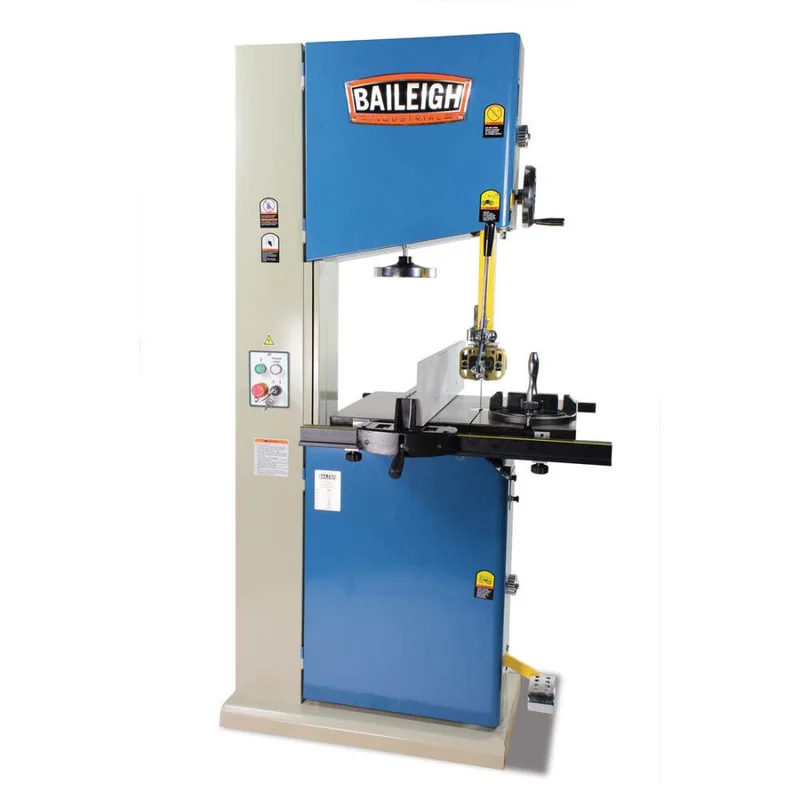

Baileigh WBS-18 Vertical Band Saw 220V 1 Phase 3HP 18in
The WBS-18 vertical wood cutting band saw is basically a larger version of the WBS-14 and is one of the most used machines in any shop.
This 220V 1 Phase 3HP bandsaw has a large 17-5/8 In.
Throat depth and operates on two speeds 2800 or 3950 Rpm.
A patented blade guide system helps keep the blade perfectly aligned for precise cuts.
A foot brake and quick release blade system round out the running gear of the WBS-18.
The WBS-18 vertical wood cutting band saw is built to last with its fully welded steel frame.
The 20 In.
X 24 In.
All cast iron table on the WBS-18, has the ability to tilt to 45 Deg.
Many accessories such as a heavy duty rip fence and miter gauge are also included.
California Proposition 65 Warning.
Features
- This 220V 1 Phase 3HP bandsaw has a large 17-5/8 In. throat depth and operates on two speeds 2800 or 3950 Rpm
- A patented blade guide system helps keep the blade perfectly aligned for precise cuts
- A foot brake and quick release blade system round out the running gear of the WBS-18
- The 20 In. x 24 In. all cast iron table on the WBS-18, has the ability to tilt to 45 Deg
- Many accessories such as a heavy duty rip fence and miter gauge are also included
- 153.5 In. long x 1/8 – 1-1/4 In. wide belt/blade
Specifications
Brand Name- Baileigh
Amperage (A)- 0.0
Assembled Weight (lbs)- 700
Country of Origin- Taiwan
CSA Certified- No
Cutting Capacity- 17.625″ Deep
ETL Listed- No
Horsepower (hp)- 3
MFG Part (OEM)- 1016612
Material- Cast Iron
Maximum Blade Length (In)- 153.5
Maximum Blade Width (In)- 0.125-1.25
Maximum RPM- 2800/3950
Package Contents- Band Saw, Rip Fence, Miter Gauge,Fence
Package Depth- 90
Package Height- 45
Package Weight- 700
Phase- 1
Product Condition- New
Table Length (in)- 20
Table Width (in)- 24
UL Listed- No
UPC- 400016000405
Warranty Type- No Manufacturer’s Warranty
